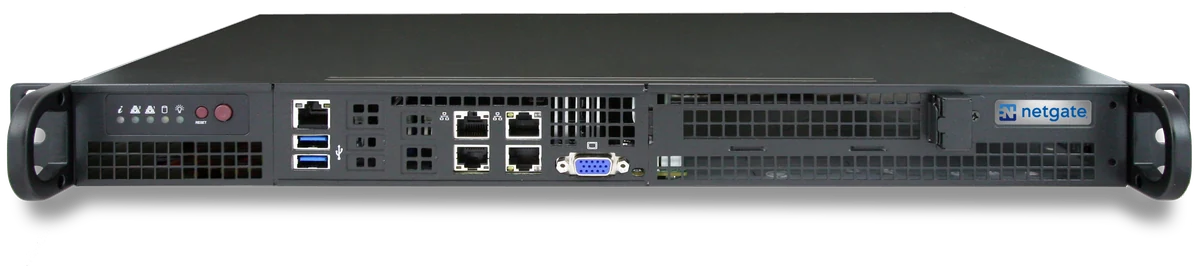

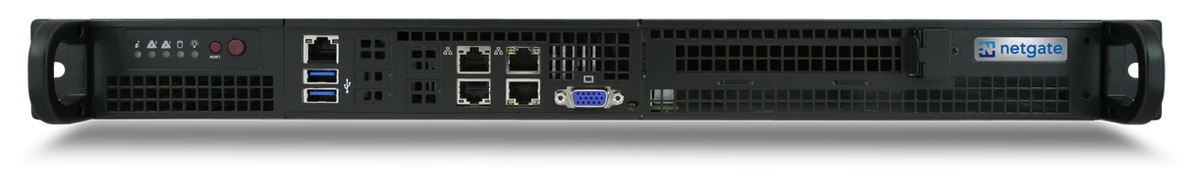

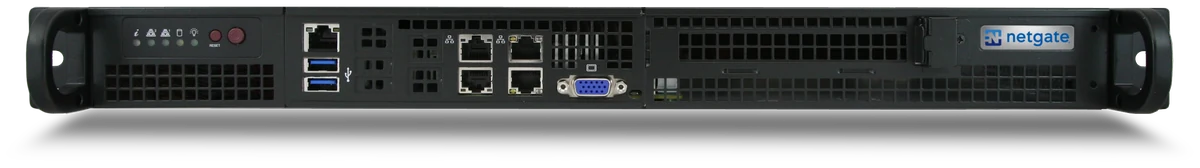

Netgate 1541 pfSense+ Security Gateway
Top-of-range 1U rackmount gateway for the most demanding enterprise and carrier environments.
Netgate 1541 pricing
| Option | Price inc. VAT | Price ex VAT |
|---|---|---|
| BASE | £2,602.80 | £2,169.00 ex VAT |
| MAX | £2,878.80 | £2,399.00 ex VAT |
| RAID | £3,354.00 | £2,795.00 ex VAT |
Prices track the live USD/GBP exchange rate in our shop and may vary slightly at checkout.

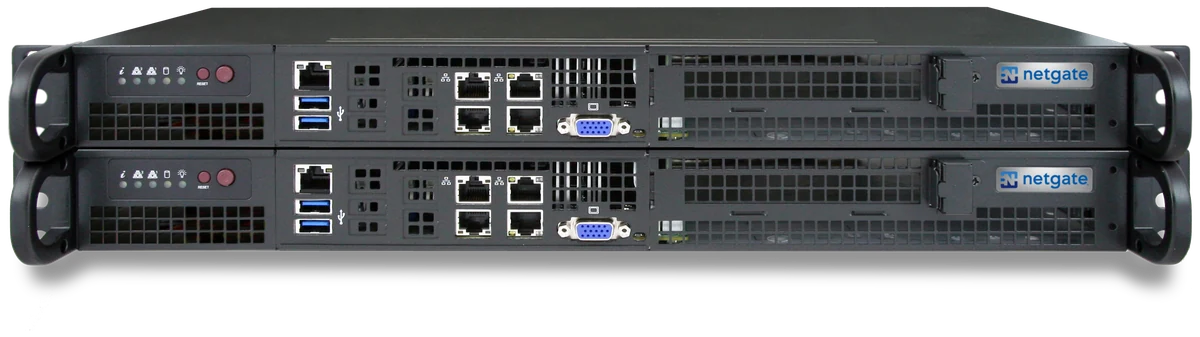

Deployments this size deserve a conversation, not a basket — sizing, HA failover pairs, port layout, VPN design. A free 20-minute call with the engineer who'd configure it, no obligation.
BASE vs MAX vs RAID — what's the difference?
Same chassis, same ports, same 500 GB SSD on BASE and MAX — the steps up are memory, then disk redundancy. More RAM directly raises the connection-table ceiling and gives IDS/IPS and proxy packages room to work.
| 1541 BASE | 1541 MAX | 1541 RAID | |
|---|---|---|---|
| RAM | 16 GB ECC | 32 GB ECC | 32 GB ECC |
| Storage | 500 GB M.2 SSD | 500 GB M.2 SSD | 2× 256 GB SSD in RAID 1 |
| Best for | Standard edge firewall | Heavy IDS/IPS, large state tables | As MAX, plus disk failure tolerance |
| Price | £2,602.80 inc. VAT | £2,878.80 inc. VAT | £3,354.00 inc. VAT |
💡 Our advice: the MAX's 32 GB is the sweet spot; add RAID if the firewall must survive a disk failure without a rebuild.
Technical specifications
| Firewall throughput | 18.64 Gbps |
| IPsec VPN throughput | 9.30 Gbps |
| Routing (L3) | 18.80 Gbps |
| Ports | 2× 10GBase-T + 2× 1GbE RJ45 (expandable to 8) |
| CPU | Intel Xeon D-1541, 8-core / 16-thread @ 2.1 GHz |
| RAM | BASE: 16 GB ECC · MAX/RAID: 32 GB ECC |
| Storage | 500 GB M.2 SSD (RAID: 2× 256 GB) |
| Form factor | 1U rack · active cooling |
| Software | pfSense Plus (pre-installed & licensed) |
Official Netgate performance
Netgate's independently published benchmark figures for the Netgate 1541 (IPERF3 traffic). Real-world throughput depends on packet size and enabled features.
What's included
Who is it for?
The top of the gateway range. Designed for carrier, ISP and very large enterprise deployments.
Email us a quick description of your network and we'll give you an honest recommendation, even if it's a cheaper model. Ask us →
We'll audit your existing config, re-create every rule and VPN, and cut over out-of-hours with a tested rollback plan — so Monday morning just works. Migration from £399 inc. VAT.
